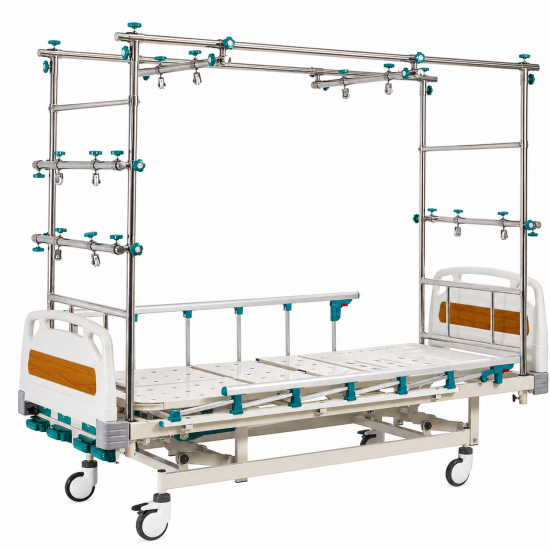

A Dedicated Hospital Bed for Orthopedic and Trauma Departments

General ward beds and orthopedic beds serve different clinical requirements. For orthopedic departments, patient positioning may involve not only backrest and bed height adjustment, but also separate positioning of the affected lower limb and the use of a dedicated traction structure. This manual three-function orthopedic hospital bed is designed specifically around these requirements.

The bed combines a stainless steel traction frame, independently adjustable left and right leg sections, manual backrest elevation and adjustable bed height. This specialized configuration makes it suitable for hospitals equipping orthopedic wards, trauma departments and postoperative care areas.

Independent Left and Right Leg Sections

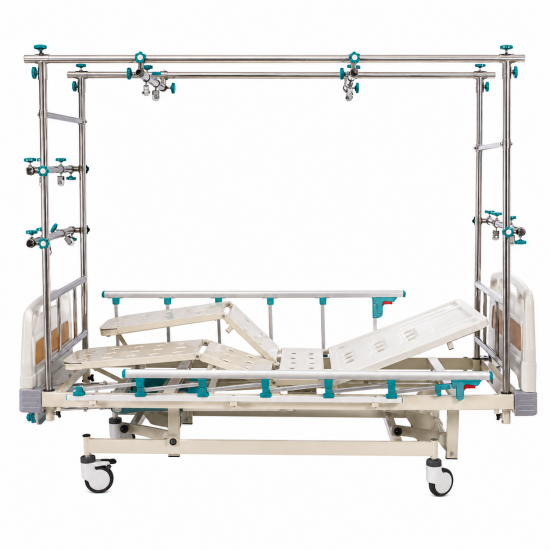

The lower mattress platform is divided into separate left and right sections. Unlike a conventional hospital bed where both lower limbs are normally repositioned together, this model allows the two sides to be adjusted independently.

Separate Crank Mechanisms for Each Leg

Two manual crank mechanisms are used to control the left and right leg sections separately. Each section provides an adjustment range of approximately 0–40°, allowing caregivers to raise one side without requiring the opposite side to follow the same movement.

This independent positioning system is one of the key differences between this model and a standard three-function Hospital Bed, and gives orthopedic departments greater flexibility when managing different lower-limb positioning requirements.

Stainless Steel Traction Frame for Orthopedic Applications

A large four-post traction structure surrounds the mattress platform. The traction frame is manufactured from stainless steel and incorporates horizontal and vertical rails with multiple adjustable connection points.

Configurable Traction Accessory Positions

Adjustable clamps can be repositioned along the traction rails, allowing compatible traction components to be arranged according to the required orthopedic setup. This makes the bed more adaptable for hospital departments handling different orthopedic and trauma cases.

Durable Stainless Steel Construction

Using stainless steel for the traction structure provides good resistance to corrosion and repeated cleaning while maintaining a rigid support framework. This is particularly valuable for equipment intended for long-term use in busy orthopedic departments.

Manual Patient Positioning Functions

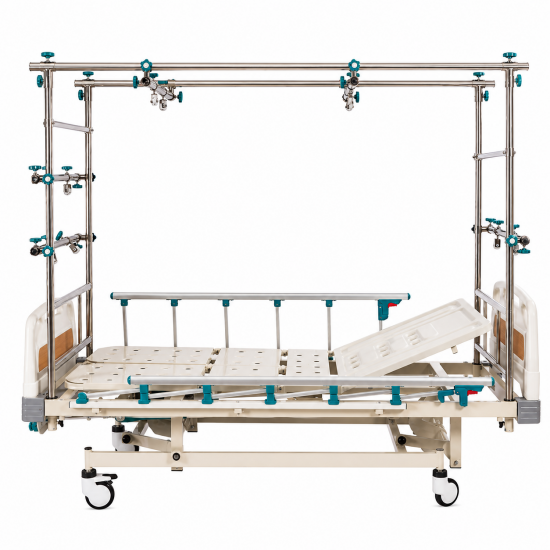

0–70° Backrest Adjustment

The backrest section can be raised manually from approximately 0° to 70°. This allows the upper body to be repositioned for resting, eating and routine bedside nursing while the patient remains on the same bed.

530–730 mm Bed Height Range

The mattress platform height can be adjusted from approximately 530 mm to 730 mm. The adjustable working height gives nursing staff greater flexibility when carrying out bedside care and other routine procedures.

0–40° Independent Lower-Limb Elevation

The left and right leg sections each provide an adjustment range of approximately 0–40°. Because the two sections use independent controls, their positions do not need to remain synchronized.

Hospital-Oriented Safety and Mobility Configuration

Beyond its orthopedic functions, the bed incorporates practical components required for routine hospital use. The main structure is manufactured from epoxy-coated steel, while PP and other medical-grade plastic components are used in the head and foot board assemblies.

Foldable Aluminum Alloy Side Rails

Foldable aluminum alloy side rails are installed on both sides of the mattress platform. They provide patient protection when raised and can be lowered when medical staff need closer bedside access.

Central Braking System

Four medical casters support movement between hospital care areas. The central braking system allows staff to secure the bed efficiently once it has been moved into the required position.

Technical Specifications

Dimensions

Overall Dimensions: 2235 × 960 mm

Mattress Platform: 1910 × 830 mm

Bed Height: 530–730 mm

Net Weight: Approximately 152 kg

Load Capacity: Up to 250 kg

Adjustment Functions

Backrest Elevation: 0–70°

Left Leg Elevation: 0–40°

Right Leg Elevation: 0–40°

Leg Adjustment: Independent manual crank control for each side

Bed Height Adjustment: 530–730 mm

Materials and Main Components

Main Structure: Epoxy-coated steel frame

Traction Frame: Stainless steel

Side Rails: Foldable aluminum alloy

Head and Foot Boards: PP construction

Casters: Four medical casters

Braking System: Central brake

Why Hospitals Choose a Specialized Orthopedic Bed

For an orthopedic department, selecting a hospital bed only by the number of functions can overlook important differences in actual clinical configuration. A standard manual bed may provide backrest and leg adjustment, but it does not necessarily provide independent lower-limb positioning or an integrated orthopedic traction structure.

This model addresses those requirements in a single platform. The independently controlled leg sections provide more flexible lower-limb positioning, while the stainless steel traction frame creates a dedicated structure for compatible orthopedic traction configurations.

For Hospital Projects and Bulk Procurement

This orthopedic traction bed can be supplied for new hospital projects, orthopedic ward upgrades, trauma departments, rehabilitation facilities and medical equipment distribution programs. Configuration options can be discussed according to project specifications, purchasing quantities and destination market requirements.

Hospital buyers and medical equipment distributors can contact us for detailed specifications, available configurations, compatible accessories and bulk quotation information.
