Electric Hospital Shower Trolley for Professional Patient Bathing

Bathing patients with severely limited mobility presents a different set of requirements from routine bedside care. Hospitals need equipment that can support patient positioning, caregiver access, wet-environment operation, cleaning and repeated movement between clinical areas. A conventional patient stretcher or hospital bed is not designed specifically around these requirements.

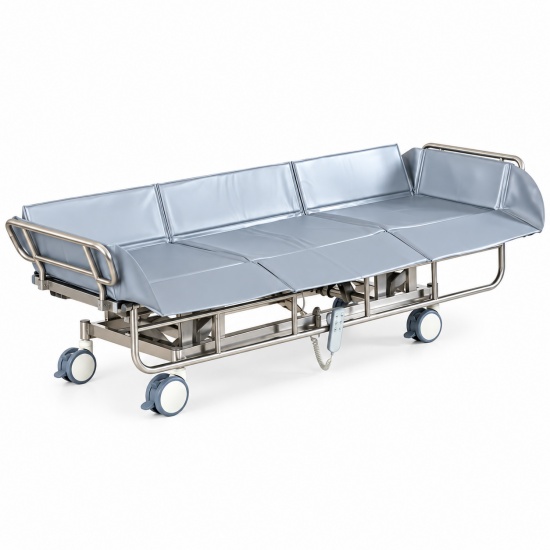

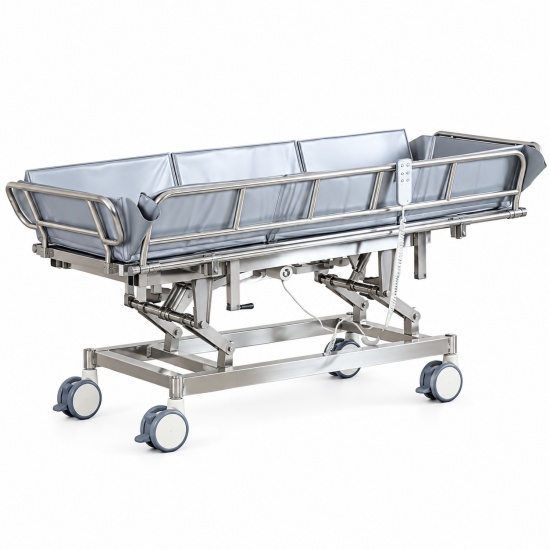

This electric hospital shower trolley provides a dedicated mobile platform for assisted patient bathing and hygiene procedures. It combines electric height adjustment, powered platform tilting, a stainless steel structural frame, waterproof padded patient surface, extended folding side rails and mobile caster system in one professional wet-care solution.

Designed for hospitals, rehabilitation centers, medical institutions and healthcare projects, the trolley is particularly suitable for patients who cannot safely use conventional shower facilities because of restricted mobility or dependence on caregiver assistance.

Why Hospitals Need Dedicated Patient Bathing Equipment

Designed around Assisted Hygiene Procedures

Patients who cannot stand or maintain a stable seated position may require bathing and hygiene care while remaining fully supported. Attempting to perform these procedures on equipment not intended for wet use can make patient positioning, water management, caregiver access and subsequent cleaning more difficult.

A purpose-built hospital bathing trolley provides a horizontal patient support platform while allowing caregivers to work around the patient from different positions. This creates a more practical workflow for departments and facilities regularly handling dependent patients.

Suitable for Patients with Restricted Mobility

The internal patient platform measures approximately 1950 × 630 mm, providing a full-length support area for assisted bathing. The design can be used for patients who require substantial caregiver assistance during personal hygiene procedures.

Electric Height Adjustment Improves Caregiver Working Access

The patient platform can be electrically adjusted through a height range of approximately 430–660 mm, excluding the side rails. This allows caregivers to change the working height according to the procedure being performed.

A lower platform position can support certain patient transfer arrangements, while raising the trolley provides improved working access during washing, cleaning, drying and other hygiene procedures.

Powered Adjustment Instead of Repeated Manual Positioning

For institutional environments where bathing equipment may be used repeatedly, electric adjustment simplifies routine positioning. The powered system reduces dependence on manual mechanical adjustment and allows the platform to be repositioned according to different stages of the care process.

Independent Electric Lifting and Tilting Functions

The trolley incorporates two electric actuators. One actuator controls overall platform lifting, while the second independently controls the tilting movement.

This independent configuration allows the operator to adjust working height and platform angle according to different patient-care requirements rather than relying on a fixed-height bathing surface.

Powered Tilting for More Flexible Patient Positioning

The electric tilting function is an important distinction between this model and a basic mobile shower stretcher. Caregivers can modify the platform position during assisted hygiene procedures without manually lifting or mechanically repositioning the complete patient support surface.

For hospital procurement, this makes the trolley a more specialized solution for departments requiring regular assisted bathing of patients with limited mobility.

Stainless Steel Structure for Wet Clinical Environments

30 × 60 × 1.1 mm Stainless Steel Main Frame

Material selection is particularly important for medical equipment intended for frequent exposure to water. The main supporting frame is manufactured from 30 × 60 × 1.1 mm stainless steel rectangular tubing, providing a robust structural foundation for the lifting and tilting mechanisms.

Compared with equipment designed primarily for dry bedside use, the stainless steel structure makes the trolley more appropriate for repeated operation in patient bathing and wet-care environments.

Reinforced Double-V Lifting Structure

The adjustable platform is supported by a reinforced double-V structural mechanism. The platform connecting sections incorporate 25 × 38 mm stainless steel components to reinforce the moving assembly.

This structural arrangement is designed to combine powered adjustability with the stability required for professional healthcare applications.

240 kg Rated Load Capacity

The trolley provides a rated load capacity of 240 kg. For hospital buyers, load capacity should be evaluated together with the supporting structure, actuator arrangement and overall frame construction, particularly when selecting equipment for frequent institutional use.

Waterproof Removable Surface Supports Hospital Cleaning Procedures

Water-Resistant Patient Contact Area

The patient support area uses a high-toughness waterproof outer material suitable for exposure to water during assisted bathing procedures. High-density EVA padding underneath provides a softer support surface than an uncovered rigid platform.

The combination is intended to balance the requirements of wet-area operation with patient comfort during hygiene care.

Removable Design for Cleaning and Disinfection

The bathing surface can be removed from the trolley for cleaning and disinfection. This is an important practical feature for healthcare facilities where equipment may be used by different patients and must be incorporated into routine cleaning protocols between uses.

The open stainless steel supporting structure also provides practical access to structural areas during routine equipment cleaning.

Extended Folding Side Rails Combine Protection with Caregiver Access

Full-Length Lateral Protection during Patient Care

Extended stainless steel side rails are installed on both sides of the bathing platform to provide lateral protection when the patient is positioned on the trolley.

The side rails are designed to withstand vertical pulling or pushing loads of up to 100 kg, providing a robust protective barrier for professional healthcare use.

180° Rotation after Lowering

Patient protection must not prevent caregivers from accessing the patient when required. The side rails can therefore be lowered during transfer or care procedures and can rotate through up to 180 degrees after being lowered.

This configuration allows the side of the trolley to be opened when direct access is required and restored to a protective position afterwards.

Mobile Caster System for Hospital Workflow

Four 5-Inch Swivel Casters

The trolley is equipped with four 5-inch swivel casters for movement within healthcare environments. Wear-resistant wheel surfaces and self-lubricating bearings support smooth and relatively quiet mobility.

The mobile configuration allows the equipment to be repositioned according to the facility's workflow instead of requiring the patient bathing procedure to take place around permanently installed equipment.

Independent Braking on Each Caster

Each caster is equipped with its own braking mechanism. Once the trolley reaches the required working position, caregivers can individually lock the casters before beginning the care procedure.

This model uses individual caster brakes rather than a central braking system, an important specification for distributors and procurement teams comparing different hospital trolley configurations.

Built for Repeated Institutional Use

More Than a Standard Patient Transport Trolley

A hospital shower trolley should not be evaluated simply as a stretcher fitted with a waterproof surface. Professional bathing applications require a combination of structural durability, powered positioning, patient protection, wet-environment materials, cleaning accessibility and caregiver working access.

This model integrates these requirements into a dedicated platform intended specifically for assisted bathing and hygiene care.

Suitable for Hospitals and Rehabilitation Facilities

The trolley can be considered for hospital wards, rehabilitation centers, long-term medical facilities and other institutional environments caring for patients who require substantial assistance with bathing.

For medical equipment distributors and hospital project suppliers, the combination of electric positioning and stainless steel construction also makes the product suitable for projects where equipment specifications need to address both clinical workflow and long-term institutional operation.

Technical Specifications

Overall Dimensions: 2150 × 870 × 680–900 mm, including side rails.

Internal Patient Platform: 1950 × 630 mm.

Platform Height: Approximately 430–660 mm, excluding side rails.

Adjustment: Electric overall height adjustment and powered platform tilting.

Actuator System: Two electric actuators independently controlling lifting and tilting.

Main Frame: 30 × 60 × 1.1 mm stainless steel rectangular tubing.

Platform Connecting Structure: 25 × 38 mm stainless steel components.

Lifting Structure: Reinforced double-V support mechanism.

Patient Surface: High-toughness waterproof outer material with high-density EVA padding.

Cleaning Design: Removable patient support surface for cleaning and disinfection.

Side Rails: Extended folding stainless steel protective side rails.

Side Rail Rotation: Up to 180° after lowering.

Side Rail Load Resistance: Up to 100 kg vertical pulling or pushing load.

Casters: Four 5-inch swivel casters.

Brake System: Independent caster brakes.

Rated Load Capacity: 240 kg.

For Hospital Procurement, Distributors and Healthcare Projects

When purchasing patient bathing equipment for institutional use, buyers should evaluate more than dimensions and load capacity. Frame material, adjustment method, side protection, cleaning accessibility, mobility and suitability for wet environments can all affect the equipment's practical performance after installation.

This electric hospital shower trolley combines a stainless steel frame, electric height and tilt adjustment, waterproof removable patient surface, extended folding side rails and mobile caster system to provide a dedicated solution for assisted patient bathing.

For hospitals, medical equipment distributors, importers and healthcare project suppliers looking for professional wet-care equipment, the model can be supplied according to project and procurement requirements.
