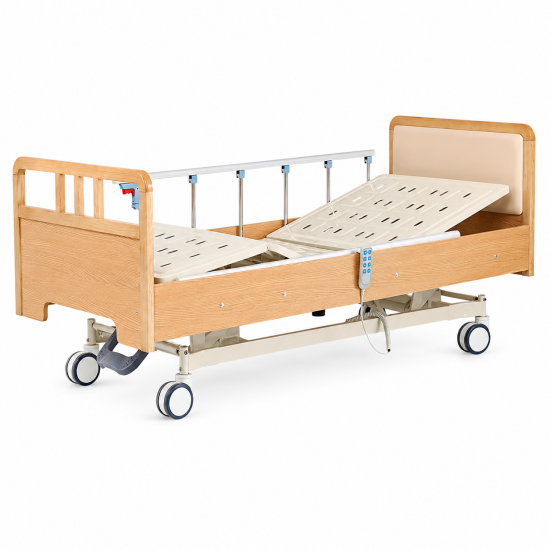

Professional Electric Nursing Bed for Daily Care and Rehabilitation

This professional electric nursing bed is designed for long-term care environments where users require regular positioning assistance and caregivers need reliable access for everyday nursing tasks. Three electric adjustments control the backrest, leg section and overall bed height, providing practical positioning options for resting, sitting and bedside care.

The bed combines a strong steel structure with a one-piece stamped mattress platform, 148 cm six-position aluminum alloy side rails and a central locking caster system. Wooden head and foot panels soften the overall appearance, making the bed suitable for both professional care facilities and more residential-style elderly care environments.

Three Electric Functions for Flexible Positioning

0–75° Backrest Adjustment

The electric backrest can be adjusted continuously from approximately 0° to 75°. Raising the upper section helps the user move from a flat sleeping position into a semi-sitting or sitting posture for meals, reading, communication and other everyday activities.

For caregivers, powered adjustment also reduces the need to manually lift the user's upper body during routine position changes.

0–35° Leg Positioning

The leg section provides electric adjustment from approximately 0° to 35°. It can be controlled separately from the backrest, allowing the mattress platform to be configured according to different resting and care requirements.

Combining back and leg adjustments gives caregivers greater flexibility when arranging a comfortable position for users who spend extended periods in bed.

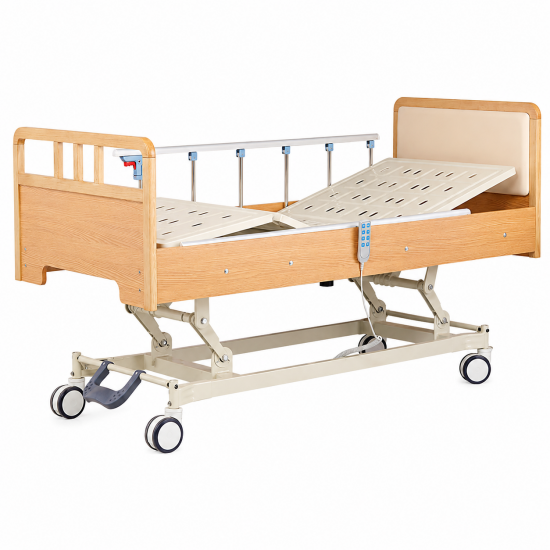

450–720 mm Whole-Bed Height Adjustment

The complete bed platform can be raised or lowered electrically through a height range of approximately 450–720 mm. This function is particularly useful during long-term nursing because different activities often require different working heights.

Caregivers can raise the mattress platform when performing routine bedside care, changing bedding or assisting with repositioning. The bed can then be returned to a lower position according to the user's daily requirements.

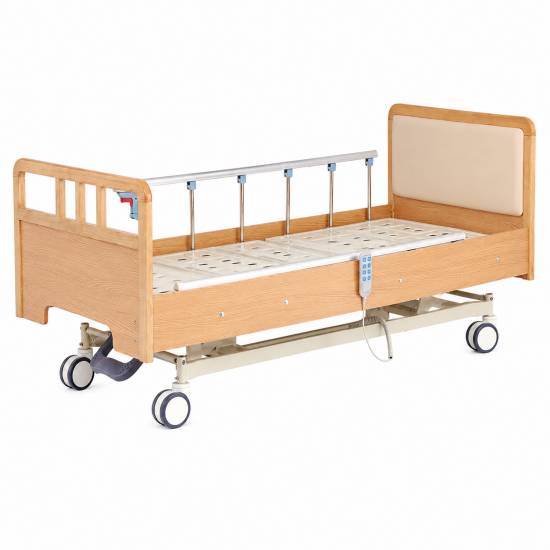

148 cm Extended Aluminum Side Rail System

Six-Position Folding Structure

Both sides of the bed are equipped with six-position folding aluminum alloy safety rails. At approximately 148 cm in length, the rails provide extended coverage along the mattress platform compared with shorter conventional folding guardrails.

The longer structure provides useful side support for elderly residents and users with limited mobility. At the same time, the folding mechanism allows the rails to be lowered when caregivers require unobstructed access to the mattress surface.

Convenient Access for Everyday Nursing

Side protection should not make daily care unnecessarily difficult. The folding design allows caregivers to open the bedside area for transfers, dressing, cleaning and bedding changes, then return the rails to the required position when bedside support is needed.

This combination of extended coverage and convenient access makes the rail system particularly suitable for a Nursing Bed used in professional long-term care environments.

Stable Structure for Repeated Daily Operation

One-Piece Stamped Steel Bed Platform

The mattress platform is manufactured from formed steel sections using an integrated stamping process rather than a conventional welded wire-mesh construction. This creates a stable support surface for the mattress and provides the structural reliability required for repeated electric adjustment.

Ventilation openings are formed directly into the platform to maintain airflow beneath the mattress. The smooth, integrated structure is also practical for routine cleaning and maintenance in professional care environments.

Reinforced Steel Supporting Frame

The electric positioning system is supported by a durable steel chassis designed to remain stable during backrest, leg and height adjustments. The structure provides a dependable foundation for regular use in nursing homes, rehabilitation centers and other facilities where beds may be operated many times throughout the day.

Central Locking for Easier Bed Management

Central Brake Caster System

Instead of requiring caregivers to operate four individual caster brakes separately, this model is equipped with a central locking system. The bed can be moved when necessary and then secured through the centralized braking mechanism once it reaches the required position.

This feature is useful in professional facilities where beds may need to be repositioned during room cleaning, equipment arrangement or routine care procedures.

Wooden Design for a More Comfortable Care Environment

Warm and Residential Head and Foot Panels

Long-term care rooms are not simply treatment spaces. For many elderly residents, they are also everyday living environments. The wooden head and foot panels therefore give this model a warmer visual character than conventional all-plastic or metal medical beds.

This residential styling makes the bed suitable for nursing homes, assisted living facilities and rehabilitation environments seeking professional functionality without creating an overly clinical atmosphere.

Functionality Without an Institutional Appearance

The wood-finish panels do not replace the professional functions of the bed. Instead, they complement the electric positioning system, extended aluminum rails, central locking casters and steel supporting structure.

The result is an Electric Nursing Bed that combines the practical requirements of professional nursing with an appearance better suited to long-term residential care.

Designed for Professional Long-Term Care

This model is suitable for nursing homes, rehabilitation centers, elderly care facilities, assisted living communities and other long-term care environments. It is particularly useful where residents require frequent position changes while caregivers need convenient access to the bed throughout the day.

Key Configuration for Healthcare Buyers

The bed combines a 0–75° electric backrest, 0–35° electric leg adjustment and 450–720 mm whole-bed height adjustment with a one-piece stamped steel platform, 148 cm six-position aluminum alloy folding rails and a central locking caster system.

For nursing facility operators, distributors and healthcare equipment procurement teams, this configuration provides a practical balance of positioning flexibility, structural durability, bedside accessibility and long-term resident comfort.
