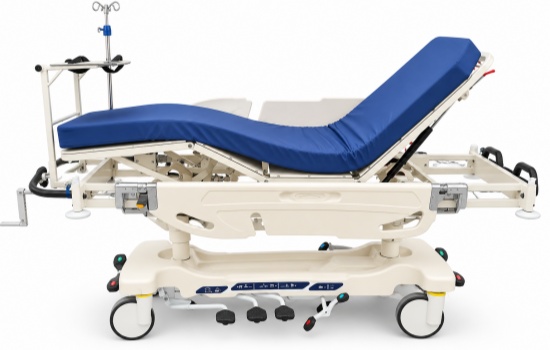

Heavy Duty Hydraulic Patient Transfer Stretcher with 320kg Load Capacity

This heavy duty hydraulic patient transfer stretcher is designed for hospitals, emergency departments and professional healthcare facilities requiring reliable patient transportation equipment with multiple adjustment functions and a high load capacity.

Featuring a reinforced steel frame, dual hydraulic lifting cylinders and a four-section resin patient platform, the stretcher provides an integrated solution for patient transportation, positioning and bedside care. Its specified load capacity of at least 320 kg makes it an option for hospital procurement projects requiring a higher-capacity hydraulic stretcher.

The stretcher combines 550–870 mm hydraulic height adjustment, pneumatic backrest positioning, manual knee section adjustment, Trendelenburg and Reverse Trendelenburg functions, rotating fold-down side rails and a central braking system.

Additional equipment includes four 200 mm casters, a 100 mm directional fifth wheel, two foldable IV poles, oxygen cylinder storage, a documentation table and ergonomic push handles.

Heavy Duty Steel Frame and High Load Capacity

Steel Frame Construction

The stretcher is manufactured with a high-quality steel frame designed to support the hydraulic lifting structure and adjustable patient platform.

The frame incorporates a dual hydraulic cylinder system and a four-section resin platform, providing a structural configuration suitable for professional hospital transportation applications.

Specified Load Capacity of at Least 320 kg

The stretcher has a specified load capacity of at least 320 kg.

This capacity is an important consideration for hospitals, medical equipment distributors and healthcare project contractors evaluating patient transportation equipment.

Purchasing teams should verify the manufacturer's confirmed load rating and relevant testing documentation against the technical requirements of their project.

Electrophoretic and Powder-Coated Surface Treatment

The steel frame receives electrophoretic treatment followed by powder coating.

This surface treatment provides a protective finish for the metal structure and is suitable for consideration in healthcare environments requiring regular equipment maintenance and cleaning.

Dual Hydraulic Height Adjustment System

The stretcher features two hydraulic cylinders for overall height adjustment of the patient platform.

The hydraulic lifting mechanism is operated through foot pedals, allowing caregivers to raise or lower the complete stretcher platform without an electrically powered lifting motor.

Hydraulic Lifting Specifications

• Hydraulic system: Dual hydraulic cylinders
• Minimum height: 550 mm
• Maximum height: 870 mm
• Total adjustment range: 320 mm
• Operating method: Foot-operated hydraulic controls

The adjustable height provides flexibility for different hospital transportation and patient transfer arrangements.

For hospital procurement projects, the 550–870 mm height range should be compared with the dimensions of existing hospital beds and other patient care equipment.

Four-Section Resin Patient Platform

The stretcher is equipped with a four-section resin patient platform designed to accommodate multiple positioning functions.

The platform structure supports backrest adjustment, knee section adjustment and additional foot section positioning.

Patient Platform Dimensions

• Platform length: 1920 mm
• Platform width: 620 mm
• Overall stretcher length: 2150 mm
• Overall stretcher width: 870 mm

These dimensions are important for hospitals evaluating stretcher compatibility with ward layouts, doorways, elevators and patient transportation routes.

80 mm Foam Mattress

The stretcher includes a foam mattress with dimensions of 1880 × 620 × 80 mm.

The 80 mm mattress thickness provides the specified cushioning layer for the patient platform.

Multi-Position Patient Adjustment Functions

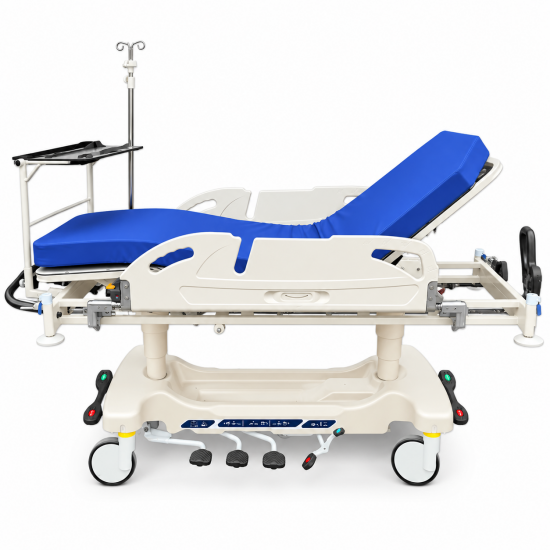

Pneumatic Backrest Adjustment

The backrest can be adjusted from 0° to 90° using a pneumatic spring-assisted mechanism.

Three red release handles are positioned at the left, center and right areas of the head section to operate the backrest adjustment system.

This configuration provides flexible upper-body positioning during hospital transportation and bedside care.

Manual Knee Section Adjustment

The knee section is adjusted through a manual hand crank, providing an adjustment range of 0° to 40°.

The crank mechanism incorporates over-cranking protection to help prevent excessive operation.

Trendelenburg and Reverse Trendelenburg Positioning

The complete patient platform supports Trendelenburg and Reverse Trendelenburg adjustment within a range of -18° to +18°.

Angle indicators are installed on both sides of the stretcher to assist caregivers in checking the platform inclination.

Adjustable Foot Section

The foot section also features an angle adjustment function, providing an additional positioning option.

The specific foot section adjustment range should be confirmed against the detailed technical specifications.

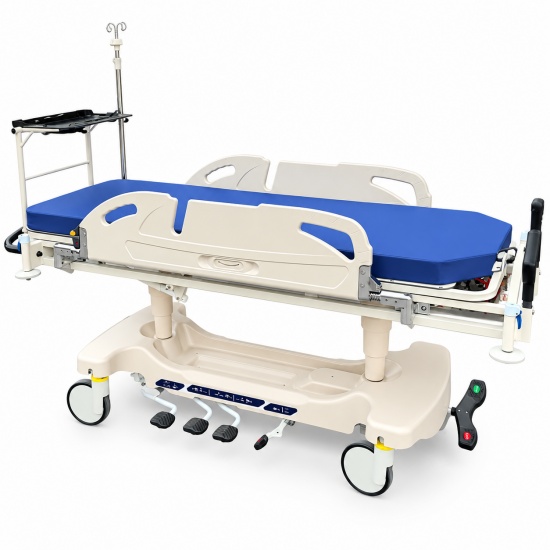

Rotating Fold-Down Side Rails

The stretcher features two rotating side rails with a T-shaped panel design.

The side rails can be rotated and folded down horizontally, providing access to the patient from four directions during nursing procedures and transfer preparation.

Side Rail Structure

• Side rail quantity: 2
• Side rail type: Rotating fold-down design
• Panel structure: T-shaped
• Locking mechanism: W-shaped safety lock
• Width with side rails folded down: 1250 mm
• Specified side rail load capacity: ≥10 kg

The side rails should be correctly secured during transportation and used according to the manufacturer's operating instructions.

The side rail load rating does not indicate suitability for supporting patient body weight during transfer procedures.

Central Braking System and Directional Fifth Wheel

The stretcher is equipped with four 200 mm main casters and a central locking system.

Operating pedals are positioned at the front, rear, left and right sides, providing access to braking and directional control functions from different positions around the trolley.

Four 200 mm Main Casters

The four main casters support movement through hospital corridors, wards and patient transportation areas.

Central Locking System

The central braking system allows the four main casters to be secured through a coordinated locking arrangement.

This configuration supports stationary positioning during patient transfer preparation and bedside procedures.

100 mm Directional Fifth Wheel

An additional 100 mm directional fifth wheel is installed beneath the chassis.

The fifth wheel provides a guiding function to assist with directional control during patient transportation.

Four Corner Bumper Wheels

Four corner-mounted bumper wheels help reduce direct contact between the stretcher and surrounding walls or equipment during movement.

Standard Medical Accessories

The stretcher includes several accessories designed for hospital patient transportation and routine care operations.

Two Foldable IV Poles

Two foldable, height-adjustable IV poles are provided, with one installed at the head end and another at the foot end.

Movable Documentation Table

A documentation table measuring approximately 300 × 400 mm is installed at the foot end.

The tabletop can be positioned horizontally facing either direction.

Oxygen Cylinder Storage

The lower chassis tray includes a designated oxygen cylinder positioning slot.

Ergonomic Push Handles

The stretcher features a P-shaped push handle at the head end and a U-shaped push handle at the foot end.

These handles provide designated gripping positions for manual transportation.

Mattress and Corner Protection

An 80 mm foam mattress and four corner bumper wheels are included in the standard configuration.

Technical Specifications

Dimensions and Structure

Product Type: Heavy Duty Hydraulic Patient Transfer Stretcher

Frame Material: High-quality steel

Surface Treatment: Electrophoresis and powder coating

Patient Platform: Four-section resin platform

Overall Dimensions: 2150 × 870 mm

Platform Dimensions: 1920 × 620 mm

Height Adjustment: 550–870 mm

Specified Load Capacity: ≥320 kg

Adjustment Functions

Hydraulic System: Dual hydraulic cylinders

Backrest Adjustment: 0°–90°

Backrest Mechanism: Pneumatic spring-assisted

Knee Section Adjustment: 0°–40°

Knee Adjustment Mechanism: Manual crank with over-cranking protection

Trendelenburg / Reverse Trendelenburg: -18° to +18°

Foot Section: Adjustable angle

Side Rails and Mobility

Side Rails: Two rotating fold-down side rails

Side Rail Locking: W-shaped safety mechanism

Width with Side Rails Folded Down: 1250 mm

Side Rail Load Capacity: ≥10 kg

Main Casters: 4 × 200 mm

Directional Fifth Wheel: 100 mm

Braking System: Central locking system

Corner Protection: Four bumper wheels

Mattress and Accessories

Mattress Dimensions: 1880 × 620 × 80 mm

IV Poles: Two foldable, height-adjustable poles

Documentation Table: Approximately 300 × 400 mm

Oxygen Cylinder Storage: Integrated positioning slot

Push Handles: Head-end and foot-end handles

Applications in Hospital Projects

General Hospital Wards

The hydraulic lifting system, adjustable patient platform and central braking configuration support routine hospital patient transportation and bedside positioning.

Emergency Departments

The multi-position platform, rotating side rails and integrated accessories provide a configuration suitable for evaluation in emergency patient transportation applications.

Intensive Care Units

The stretcher's positioning functions and nursing access features can be evaluated for appropriate ICU transportation requirements.

Hospital Equipment Procurement

Hospital purchasing departments and healthcare project contractors can evaluate the stretcher according to its load capacity, hydraulic adjustment range, frame construction, mobility system and standard accessories.
