Product Overview

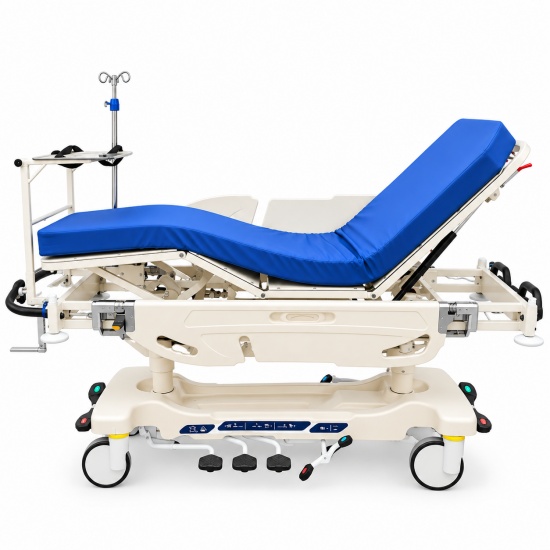

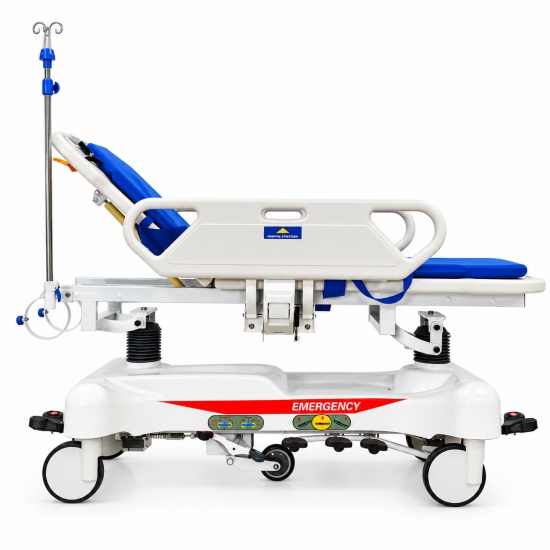

Heavy Duty Hydraulic Hospital Stretcher with 320kg Safe Working Load

This heavy duty hydraulic hospital stretcher is designed for patient transportation and positioning in hospitals, emergency departments and professional healthcare facilities. Featuring a carbon steel frame, an ABS patient platform and a specified safe working load of 320 kg, it provides a practical configuration for hospital equipment procurement and medical transportation applications.

The stretcher combines hydraulic height adjustment from 670 mm to 970 mm, gas spring-assisted backrest positioning, front-to-rear platform tilting, height-adjustable ABS side rails and a centrally controlled braking system. An independent retractable fifth wheel provides additional directional guidance during patient transportation.

Its integrated storage tray, removable mattress cover and wooden crate packaging specifications provide useful information for medical equipment distributors, importers and healthcare project purchasing departments.

320 kg Safe Working Load and Heavy Duty Construction

The stretcher has a specified safe working load of 320 kg, making it suitable for evaluation in hospital transportation projects requiring a higher-capacity patient support platform.

The steel frame and hydraulic lifting structure are designed to support the patient platform during transportation and positioning operations.

320 kg Safe Working Load

• Safe Working Load (SWL): 320 kg
• Product Type: Hydraulic Hospital Stretcher
• Frame Material: Carbon structural steel
• Patient Platform Material: ABS engineering plastic

The 320 kg safe working load is an important specification for hospitals comparing hydraulic stretcher models and evaluating equipment requirements for different departments.

For hospital tenders and procurement projects, the specified safe working load should be assessed together with the required technical documentation and applicable purchasing standards.

Welded Carbon Steel Frame

The stretcher frame is manufactured from high-quality carbon structural steel sections joined through welding.

The welded frame provides the main supporting structure for the hydraulic lifting system, patient platform, caster assemblies and lower storage tray.

Carbon Steel Structural Components

The carbon steel frame is designed to provide mechanical support for the stretcher's transportation and positioning functions.

The frame construction is an important consideration for medical equipment importers and hospital purchasing departments evaluating product specifications.

Electrostatic Resin Powder Coating

The steel structure undergoes surface rust removal followed by electrostatic resin powder coating.

This protective surface treatment provides corrosion resistance and a clean appearance suitable for professional healthcare equipment.

ABS Patient Platform

The stretcher is equipped with a patient platform manufactured from ABS engineering plastic.

The platform incorporates a split-section design to accommodate backrest adjustment and features integrated handles at its four corners.

ABS Engineering Plastic Construction

The ABS platform provides a patient support surface with toughness and corrosion resistance specified in the product design.

The material is suitable for consideration in hospital transportation equipment requiring routine surface cleaning and maintenance.

Integrated Corner Handles

Handles are incorporated into the four corners of the patient platform.

These handles provide additional gripping positions for healthcare personnel during stretcher operation and transportation.

Patient Platform Dimensions

• Overall stretcher length: 1930 mm
• Patient platform length: 1910 mm
• Patient platform width: 640 mm

Hydraulic Height Adjustment System

The stretcher features a hydraulic cylinder lifting system for overall height adjustment.

The patient platform can be raised or lowered between 670 mm and 970 mm, providing a total adjustment range of 300 mm.

Hydraulic Lifting Specifications

• Minimum height: 670 mm
• Maximum height: 970 mm
• Total height adjustment range: 300 mm
• Lifting mechanism: Hydraulic cylinder system

The hydraulic lifting mechanism provides adjustable platform height without an electrically powered lifting motor.

Adjustable Height for Hospital Equipment Compatibility

The 670–970 mm height adjustment range allows hospitals to evaluate the stretcher for transfer preparation alongside compatible hospital beds and other patient care equipment.

Purchasing departments should compare the stretcher's adjustment range with the dimensions of their existing medical equipment.

Gas Spring-Assisted Backrest Adjustment

The patient platform incorporates a gas spring-assisted backrest adjustment mechanism.

The backrest can be raised from a horizontal position to 75° ±5°, providing adjustable upper-body positioning during hospital transportation and nursing procedures.

Single-Hand Backrest Operation

The gas spring mechanism supports convenient backrest adjustment and can be operated with one hand.

Backrest Specifications

• Backrest adjustment: 0–75° ±5°
• Adjustment mechanism: Gas spring-assisted
• Operating method: Single-hand operation

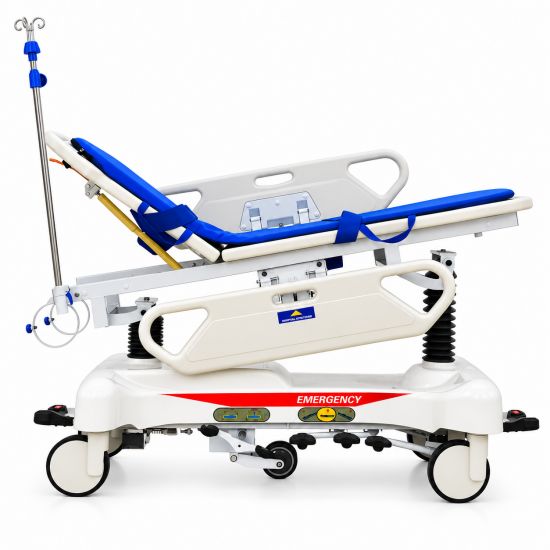

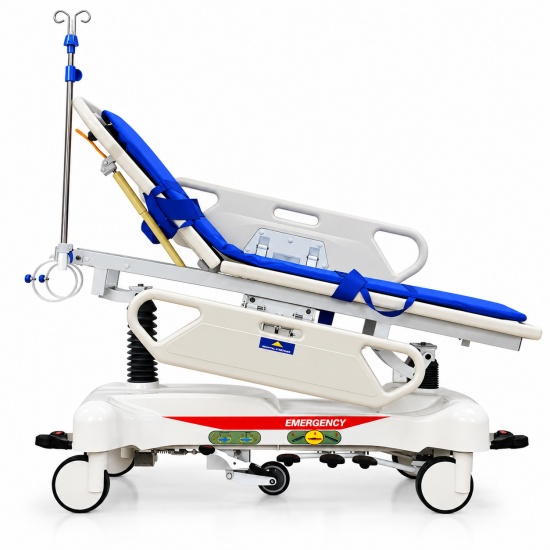

Front and Rear Platform Tilting

The stretcher supports front-to-rear platform inclination adjustment within a specified range of 0–18°.

This function provides an additional positioning option for appropriate hospital care procedures.

The exact directional limits should be confirmed according to the manufacturer's detailed technical instructions.

Height-Adjustable ABS Side Rails

The stretcher is equipped with height-adjustable ABS side rails featuring a pull-up lifting and lowering mechanism.

The side rails provide a protective barrier when raised and allow access to the patient platform when lowered.

Gas Spring-Damped Lowering

The side rail lowering mechanism incorporates gas spring damping to provide controlled movement during operation.

This design helps reduce abrupt lowering movement and supports smoother side rail operation.

Side Rail Specifications

• Side rail material: ABS engineering plastic
• Side rail type: Pull-up height-adjustable design
• Side rail length: 1080 mm
• Side rail height: 260 mm
• Side rail thickness: 35 mm
• Lowering mechanism: Gas spring-damped

Central Braking System and Independent Fifth Wheel

The stretcher is equipped with four 200 mm main casters and a central locking braking system.

The central braking mechanism allows the four casters to be locked simultaneously through a foot-operated control.

Four 200 mm Central Locking Casters

The four main casters provide mobility during transportation through hospital corridors and designated patient care areas.

Four-Corner Brake Controls

Brake control mechanisms are positioned at the four corners of the stretcher.

This arrangement allows healthcare personnel to access the braking system from different positions.

Integrated Central Brake Linkage

The central braking linkage incorporates an integrally formed round-tube structure designed to provide mechanical strength.

Independent Retractable Fifth Wheel

An independent fifth wheel is installed beneath the stretcher chassis.

Control pedals are provided on both sides of the stretcher.

When the fifth wheel is retracted, the stretcher can move freely on its four main casters. When engaged, the fifth wheel provides directional guidance during straight-line transportation.

Integrated Lower Storage Tray

The stretcher includes an integrated storage tray beneath the patient platform.

The tray provides space for compatible medical accessories, including an oxygen cylinder.

The specified tray load capacity is 10 kg.

Water-Resistant Mattress with Removable Cover

The stretcher is supplied with a mattress featuring a water-resistant fabric surface treatment.

The mattress cover includes a zipper and can be removed for washing.

This configuration supports routine mattress cleaning and maintenance in hospital environments.

Technical Specifications

General Specifications

• Product Type: Heavy Duty Hydraulic Hospital Stretcher
• Overall Dimensions: 1930 × 640 × 670–970 mm
• Patient Platform Dimensions: 1910 × 640 mm
• Hydraulic Height Adjustment: 670–970 mm
• Safe Working Load: 320 kg
• Frame Material: Carbon structural steel
• Frame Surface Treatment: Electrostatic resin powder coating
• Patient Platform Material: ABS engineering plastic

Adjustment Functions

• Height Adjustment Mechanism: Hydraulic cylinder system
• Backrest Adjustment: 0–75° ±5°
• Backrest Mechanism: Gas spring-assisted
• Backrest Operation: Single-hand adjustment
• Front and Rear Platform Tilting: 0–18°

Side Rails and Mobility

• Side Rail Material: ABS engineering plastic
• Side Rail Type: Pull-up height-adjustable design
• Side Rail Dimensions: 1080 × 260 × 35 mm
• Side Rail Lowering: Gas spring-damped
• Main Casters: 4 × 200 mm
• Braking System: Central locking system
• Brake Control: Four-corner control arrangement
• Central Brake Linkage: Integrally formed round-tube structure
• Directional System: Independent retractable fifth wheel
• Fifth Wheel Controls: Both sides of the stretcher

Accessories

• Lower Storage Tray: Integrated design
• Storage Tray Load Capacity: 10 kg
• Mattress: Water-resistant fabric with removable washable cover

Packaging and Shipping Specifications

The stretcher is supplied with wooden crate packaging for transportation.

Wooden Crate Dimensions

• Packaging dimensions: 2020 × 835 × 760 mm
• Net weight: 95 kg
• Gross weight: 145 kg

These specifications provide useful information for international distributors and importers preparing freight calculations, warehouse planning and shipment arrangements.

Applications in Hospital Equipment Procurement

General Hospital Departments

The hydraulic height adjustment, adjustable backrest and central braking configuration provide practical functions for routine hospital patient transportation.

Emergency Departments

The mobile stretcher structure, independent fifth wheel and adjustable patient platform provide features that emergency departments can evaluate for transportation requirements.

Hospital Procurement Projects

Hospital purchasing departments can evaluate the stretcher according to its 320 kg safe working load, carbon steel frame, hydraulic adjustment range, ABS platform and standard accessories.

Medical Equipment Distribution

Medical equipment distributors and importers can include this hydraulic hospital stretcher in their patient transportation equipment range for hospitals and professional healthcare facilities.
