Electric Standing Rehabilitation Bed for Professional Care Facilities

This electric standing rehabilitation bed is designed for healthcare and rehabilitation facilities that require more than conventional patient positioning. In addition to electrically controlled backrest and leg adjustments, the complete support platform can be progressively tilted toward an upright position, providing a dedicated solution for supervised standing rehabilitation.

The model combines a 0°–75° ±5° electric tilt-up range with independent backrest adjustment from 0° to 65° ±5° and leg section adjustment from 0° to 35° ±5°. With an overall size of 2130 × 1120 × 540 mm, it integrates several positioning requirements into a single rehabilitation platform.

What Makes This Different from a Standard Electric Hospital Bed?

A conventional electric hospital bed is primarily designed around nursing positions such as backrest elevation, leg adjustment and bed height control. This model adds a fundamentally different function: controlled adjustment of the patient platform toward an upright standing position.

For procurement teams, this distinction is important. The product should be evaluated as specialized Standing Bed equipment rather than simply as another multifunction hospital bed.

Electric Tilt-Up Range: 0°–75° ±5°

The main platform can be electrically raised from the horizontal position toward a maximum tilt-up angle of approximately 75° ±5°. Because the angle changes progressively, rehabilitation staff can use intermediate positions according to the patient's prescribed training procedure and tolerance.

Electric Backrest Range: 0°–65° ±5°

Independent backrest adjustment provides additional positioning flexibility when full-platform tilt-up is not required. The upper body can be raised for supported sitting, bedside activities and routine care between rehabilitation sessions.

Electric Leg Section Range: 0°–35° ±5°

The powered leg section allows the lower-body position to be adjusted separately. Used together with the backrest, it expands the range of positions available on the same rehabilitation bed.

From Bed Positioning to Progressive Standing Training

A Single Platform with Different Functional Modes

The advantage of this configuration is not simply the number of electric adjustments. Each movement serves a different stage of patient positioning and rehabilitation.

Horizontal Resting Position

The platform can remain in its normal horizontal configuration for resting and routine bedside care.

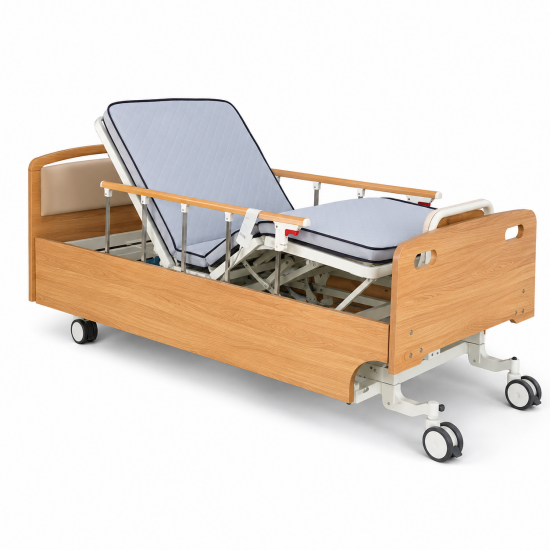

Back-Elevated Position

Independent backrest elevation provides upper-body support without changing the angle of the complete bed platform.

Chair-Style Position

Combined back and leg adjustment creates a more seated posture, providing an intermediate positioning option between lying and upright rehabilitation.

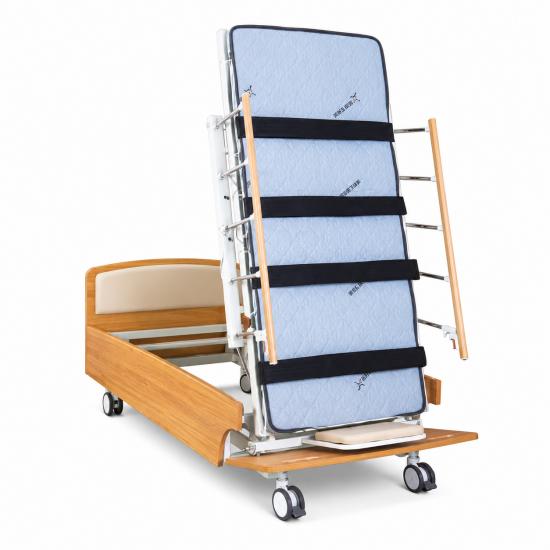

Tilt-Up Standing Position

When standing rehabilitation is required, the complete support surface can be progressively raised toward the 75° maximum angle. This gives the product a functional range beyond that of standard electric patient beds.

Multi-Point Patient Support During Tilt-Up Procedures

As the support surface approaches an upright position, patient stabilization becomes increasingly important. The bed therefore incorporates multiple adjustable support straps positioned along the body and lower limbs.

These support points are intended to help maintain appropriate positioning during supervised tilt-up procedures. Strap adjustment allows the support arrangement to be adapted to different users and rehabilitation requirements.

Functional Configuration for Rehabilitation Procurement

When hospitals, rehabilitation centers or medical equipment distributors compare standing beds, maximum tilt angle alone should not be the only purchasing consideration. The overall configuration determines how useful the equipment will be outside dedicated standing sessions.

Three Areas Buyers Should Evaluate

1. Range of Positioning Functions

This model combines full-platform tilt-up with independent backrest and leg adjustment. For facilities that need both routine positioning and standing rehabilitation, this reduces reliance on separate equipment for each function.

2. Patient Stabilization

The multi-point support strap configuration is designed around the requirements of progressive tilt-up positioning rather than ordinary bed use alone.

3. Intended Care Environment

The wood-finish headboard, footboard and surrounding panels give the equipment a less clinical appearance than many conventional rehabilitation platforms. This makes the model suitable not only for rehabilitation departments but also for facilities where rehabilitation and long-term care are delivered in the same environment.

Professional Rehabilitation Function with a Wood-Finish Exterior

A Different Approach to Institutional Rehabilitation Equipment

Professional rehabilitation equipment does not always need to have an exposed mechanical appearance. This model integrates its electric rehabilitation structure within a wood-finish surrounding design, creating a visual profile closer to long-term care furniture while retaining its specialized tilt-up function.

This is particularly useful for rehabilitation hospitals, elderly rehabilitation centers and combined medical-care facilities where equipment remains in patient rooms for extended periods.

Suitable Alongside Other Patient Care Equipment

For projects requiring several levels of patient support, this rehabilitation model can be specified alongside conventional Hospital Bed products. Standard hospital beds can serve general inpatient requirements, while standing beds can be allocated to patients requiring more specialized rehabilitation positioning.

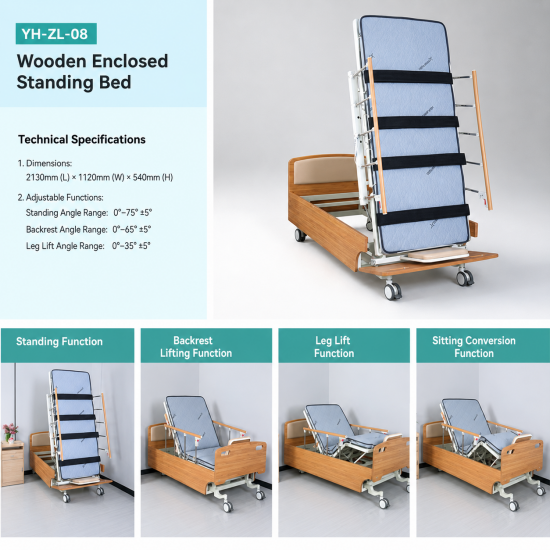

Technical Specifications

Dimensions

Overall Size

2130 × 1120 × 540 mm.

Electric Adjustment Ranges

Standing / Tilt-Up Adjustment

0°–75° ±5°.

Backrest Adjustment

0°–65° ±5°.

Leg Section Adjustment

0°–35° ±5°.

Additional Configuration

Patient Support

Multiple adjustable support straps for stabilization during supervised tilt-up and standing procedures.

Exterior Design

Wood-finish surrounding structure designed to provide a warmer appearance than conventional exposed rehabilitation equipment.

Recommended Applications

Rehabilitation Hospitals

Suitable for departments requiring progressive tilt-up capability together with adjustable patient positioning on the same platform.

Rehabilitation Centers

The combination of standing, backrest and leg adjustment provides a versatile configuration for structured rehabilitation programs.

Elderly Rehabilitation Facilities

The wood-finish exterior makes the product particularly relevant where professional rehabilitation functions are required within a less institutional environment.

Medical Equipment Distributors and Project Buyers

This model provides a differentiated rehabilitation product for distributors whose portfolios already include conventional electric hospital beds but require a more specialized standing solution.

Selecting the Right Standing Bed Configuration

Not every rehabilitation project requires the same functional level. A basic electric standing bed may be appropriate when tilt-up training is the primary requirement. Where facilities also need independent back and leg positioning for routine patient care, a multifunction configuration such as this model provides greater flexibility.

Buyers can compare additional configurations in our Standing Bed range according to required adjustment functions, rehabilitation applications and project budgets.

For technical documentation, configuration options, OEM requirements, distributor inquiries or bulk project quotations, please contact us with your required quantity and target application.
