Multi-Position Electric Standing Bed for Professional Rehabilitation

This electric standing bed is designed for hospitals, rehabilitation departments and professional care facilities that require more positioning flexibility than a basic tilt-up rehabilitation bed. In addition to the primary standing function, the system integrates backrest adjustment, leg elevation, whole-bed height adjustment and forward/backward tilt into one electrically controlled platform.

The standing angle can be adjusted from 0° to 70° ±5°, allowing the patient support surface to move progressively from a horizontal position toward an upright position. Combined with multiple independent bed movements, the system provides medical and rehabilitation facilities with a versatile platform for supervised positioning and mobility training.

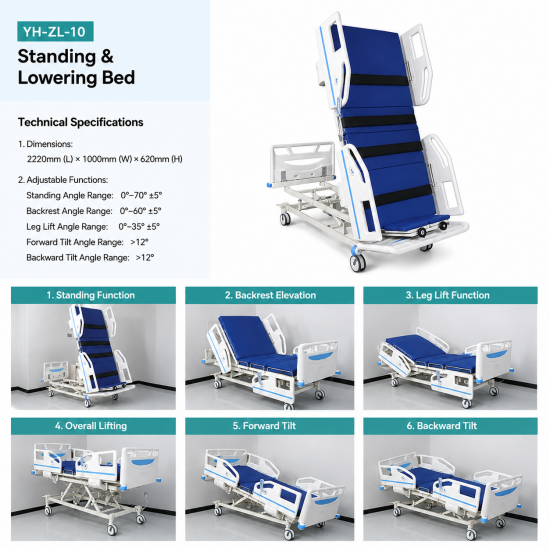

Six Adjustable Functions in One Rehabilitation Platform

1. Electric Standing Adjustment

The primary function of the bed is electrically controlled standing adjustment. The complete patient platform can be progressively tilted from 0° up to 70° ±5°, allowing rehabilitation staff to select different intermediate angles according to the prescribed training program.

Controlled Transition from Horizontal to Upright Position

Instead of requiring the user to transfer from a conventional bed to a separate standing device, the adjustable platform allows positioning to progress directly from the lying position. This can simplify workflow in professional rehabilitation environments where repeated position changes are required.

2. Electric Backrest Elevation

The backrest provides an adjustable range of 0°–60° ±5°. It can be raised independently when an upright standing position is not required, providing upper-body support for resting, observation, communication and other daily care activities.

3. Electric Leg Lift

The leg section can be adjusted through a range of 0°–35° ±5°. Independent leg positioning increases the number of configurations available to rehabilitation professionals and caregivers.

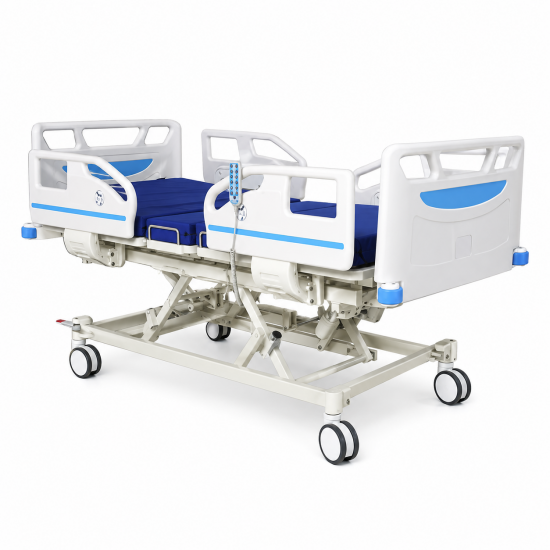

4. Whole-Bed Height Adjustment

A major difference between this model and a basic electric standing bed is the addition of whole-bed lifting and lowering. Rather than maintaining a fixed platform height, the complete bed can be vertically adjusted to support different care and rehabilitation procedures.

More Flexible Working Height for Clinical Staff

Height adjustment allows staff to modify the working level of the patient platform before positioning or rehabilitation procedures. This is particularly useful in institutional environments where one bed may be used by different patients and care teams.

5. Forward Tilt Positioning

The complete bed platform provides a forward tilt angle of more than 12°. Unlike backrest or leg adjustment, this movement changes the angle of the entire patient support platform.

6. Backward Tilt Positioning

The whole-bed platform also provides backward tilt of more than 12°, creating bidirectional tilt capability for additional positioning flexibility.

Why Whole-Bed Tilt Matters in a Professional Standing Bed

Basic standing beds are primarily designed around one major movement: raising the patient platform toward an upright position. For rehabilitation departments requiring more flexible positioning, this may not cover every operational requirement.

This model expands the positioning system by combining standing with whole-bed height adjustment and bidirectional tilt. As a result, the equipment can be used in a broader range of supervised positioning scenarios without relying solely on the standing movement.

Independent Positioning Rather Than a Single Fixed Routine

Backrest, leg and whole-bed movements provide different adjustment options before or after standing procedures. This makes the bed more adaptable to facilities managing patients with different rehabilitation requirements.

Designed Around Rehabilitation Safety and Patient Support

Multiple Safety Support Straps

The mattress platform is equipped with multiple body support straps. During supervised standing adjustment, these straps help maintain the user's position against the support surface as the inclination angle increases.

Important for Progressive Tilt-Up Procedures

As the bed approaches a more upright position, secure body positioning becomes increasingly important. The support system is therefore an integral part of the standing configuration rather than simply an accessory.

Four-Section ABS Side Rail Configuration

The bed uses large medical-grade style side rails positioned around the patient platform. The segmented arrangement provides lateral protection while allowing the articulated bed sections to move through different positions.

Foot-End Support Platform

A support platform is positioned at the lower end of the standing surface to provide additional support as the bed moves toward an upright position.

Built for Hospital and Rehabilitation Facility Workflows

With an overall size of 2220 × 1000 × 620 mm, the bed maintains the proportions of professional institutional rehabilitation equipment while integrating a mobile wheeled chassis.

Mobile Caster Base

The caster system allows staff to reposition the equipment within the facility when required. Before patient positioning or standing procedures, the bed should be correctly secured according to the facility's operating protocol.

Electric Hand Control

Electric adjustment reduces the need for manual mechanical positioning and allows the operator to control the required bed movement more conveniently during routine use.

Technical Specifications

Overall Dimensions

Bed Size

2220 mm (L) × 1000 mm (W) × 620 mm (H).

Electric Standing Range

Standing Angle

0°–70° ±5°.

Back and Leg Positioning

Backrest Adjustment

0°–60° ±5°.

Leg Lift Adjustment

0°–35° ±5°.

Whole-Bed Adjustment

Height Adjustment

Electric whole-bed lifting and lowering.

Forward Tilt

Greater than 12°.

Backward Tilt

Greater than 12°.

How This Model Differs from a Basic Standing Bed

For buyers comparing different rehabilitation beds, the main distinction should not be based only on appearance. The more important consideration is the number and type of positioning movements required by the intended facility.

Basic Standing Bed

A basic model is generally more appropriate when the purchasing requirement centers primarily on electric tilt-up standing. Its simpler configuration can be suitable for facilities that do not require extensive whole-bed positioning.

Multi-Position Standing Bed

This model is intended for projects requiring a more comprehensive positioning platform. Standing adjustment is supplemented by independent backrest and leg movements, electric whole-bed lifting, forward tilt and backward tilt.

Buyers can explore additional configurations in our Standing Bed range to compare different functional levels according to rehabilitation requirements and project budgets.

Suitable Applications

Hospital Rehabilitation Departments

The combination of standing and multiple electric adjustments makes the bed suitable for rehabilitation departments requiring one platform for different supervised positioning procedures.

Specialized Rehabilitation Centers

Facilities focusing on mobility recovery and progressive upright positioning can benefit from the wider adjustment range compared with simpler standing equipment.

Long-Term Medical and Rehabilitation Facilities

The additional backrest, leg and height adjustments also make the equipment more practical when patients remain on the platform between rehabilitation procedures.

A Higher-Specification Choice for Rehabilitation Equipment Procurement

For hospital procurement teams, distributors and rehabilitation equipment importers, this model represents a step above a single-function or basic multi-function standing bed. Its key purchasing value lies in combining six positioning capabilities within one electrically controlled rehabilitation platform.

Configuration details can be discussed according to different institutional requirements and target markets. For bulk orders, distributor cooperation, OEM requirements or detailed quotations, please contact us for further information.
